Hanadi Alnawab

BUS 3003 Pep/9

Download the Pep/9 Simulator and Assembler, launch the simulator and test it with the Source Code as shown in the screenshots below (page 165 of your textbook). This program (Source Code) prints the word “Hi”. You can access video tutorials here.

Start with the Source Code

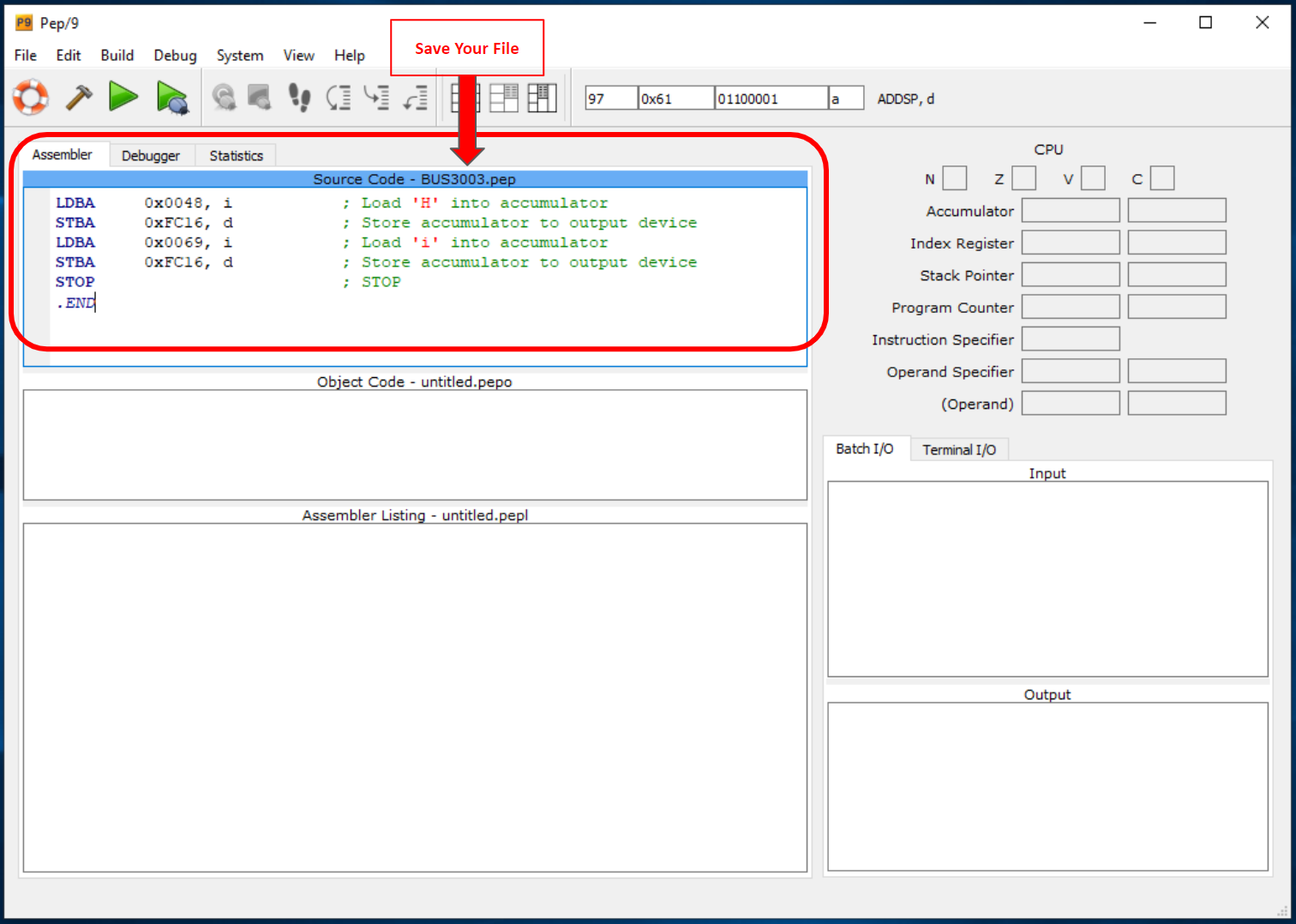

Type the code in the “Source Code” section, and save your file

Run your program

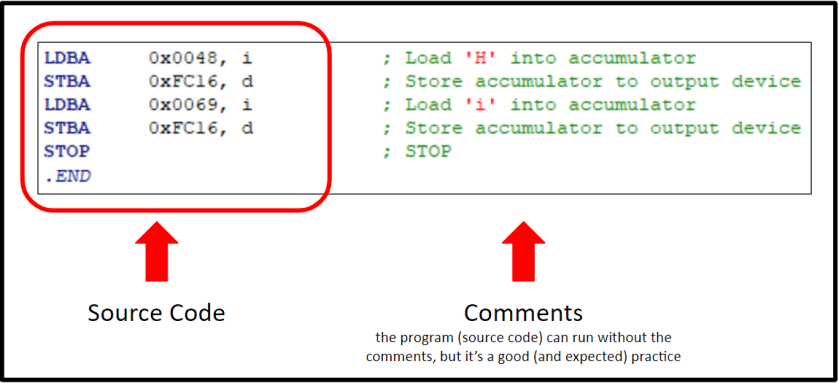

Close-up of the Source Code to print the word “Hi”

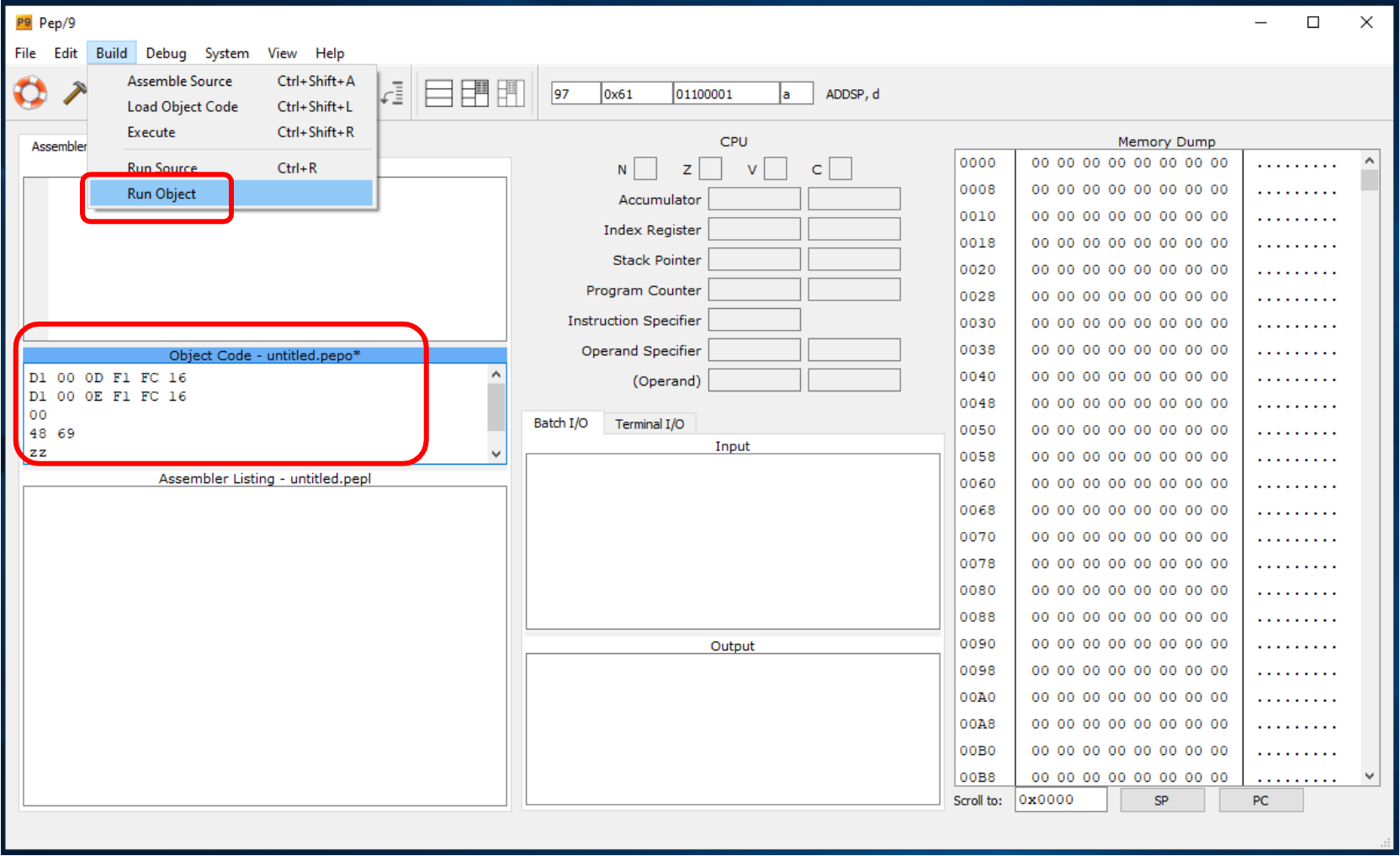

Let’s try with the Object Code!

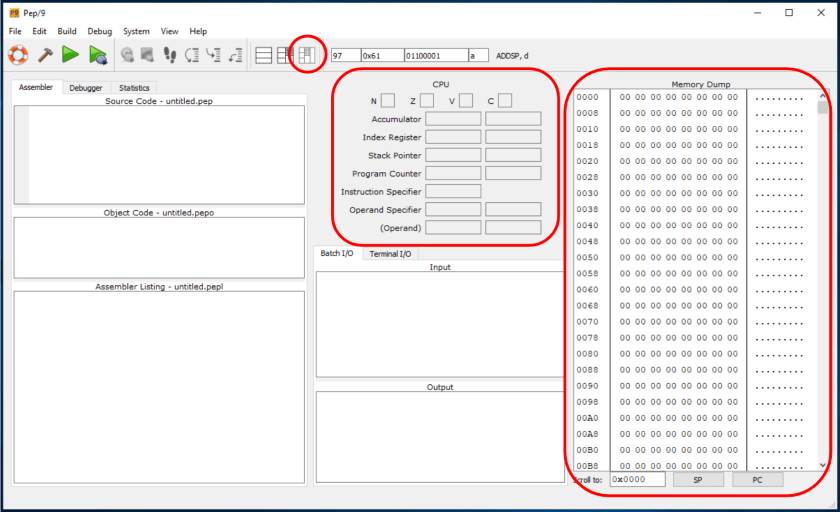

View the Memory

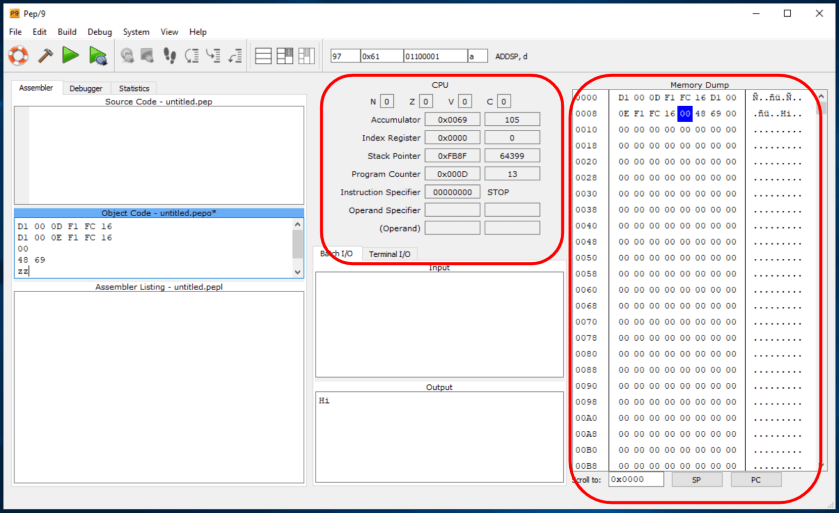

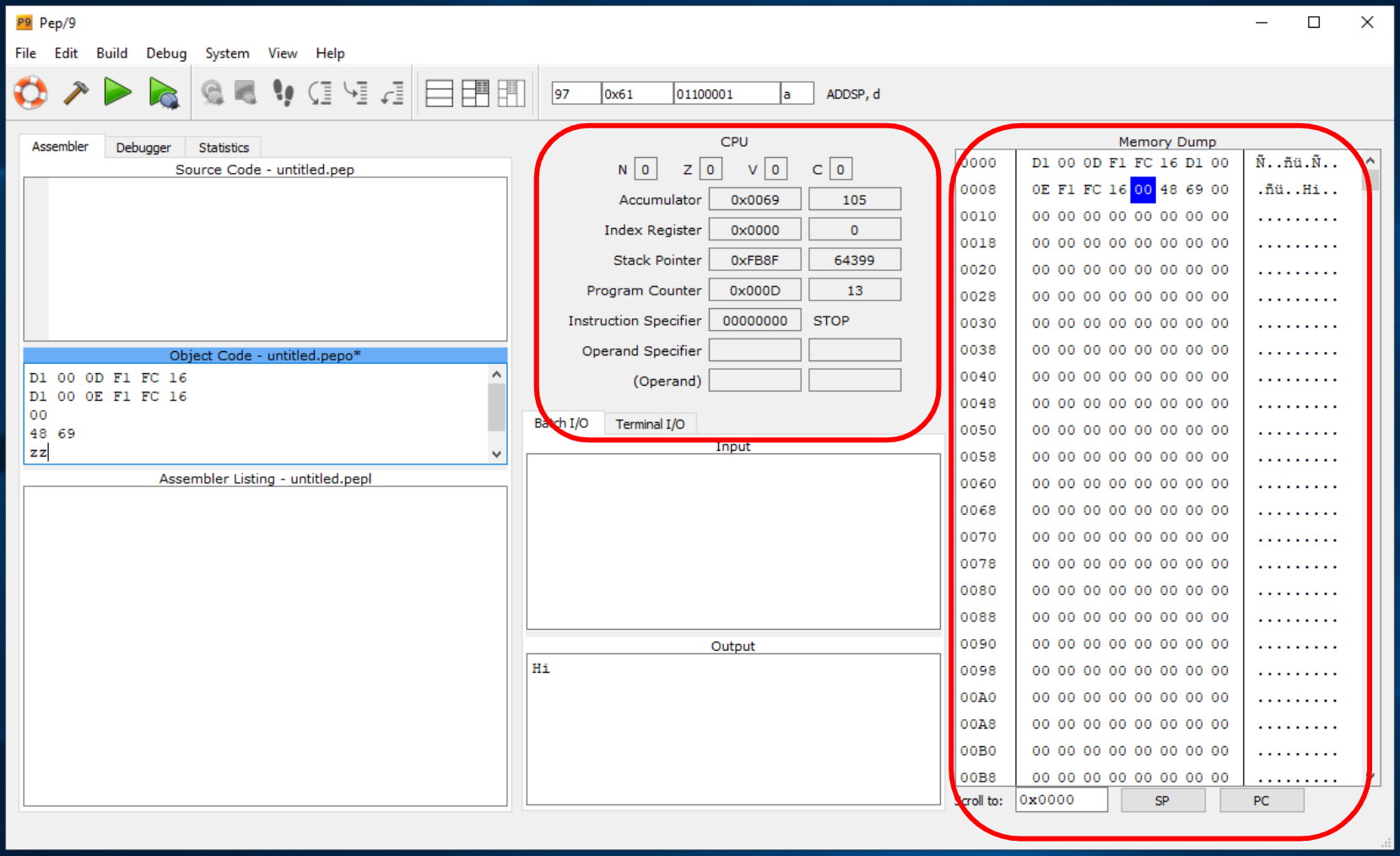

Run the Object Code and check the Memory and CPU
